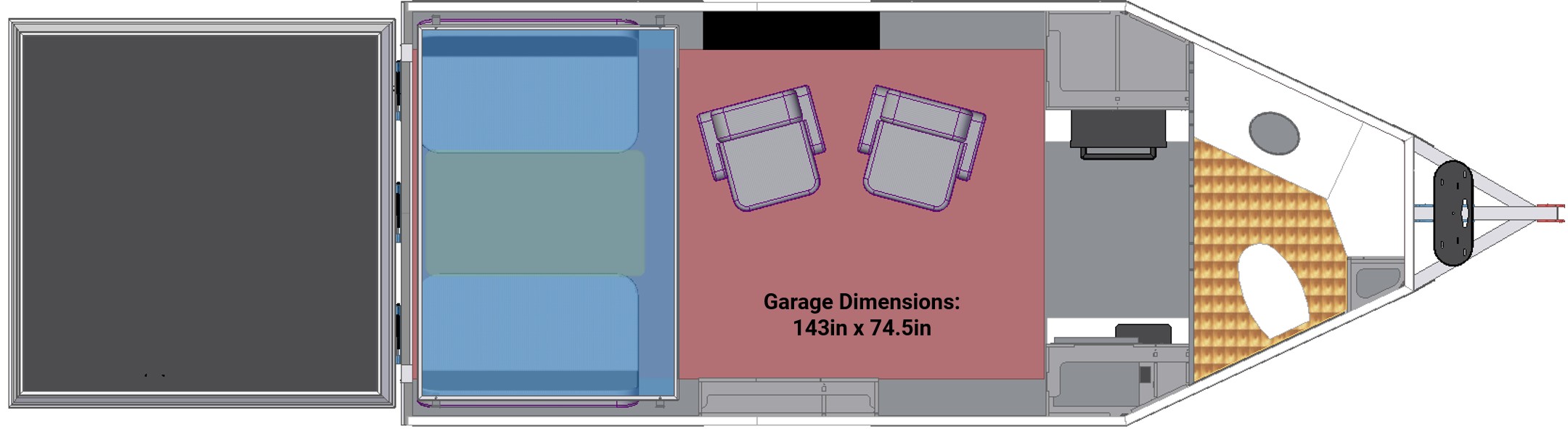

FLOOR PLANS

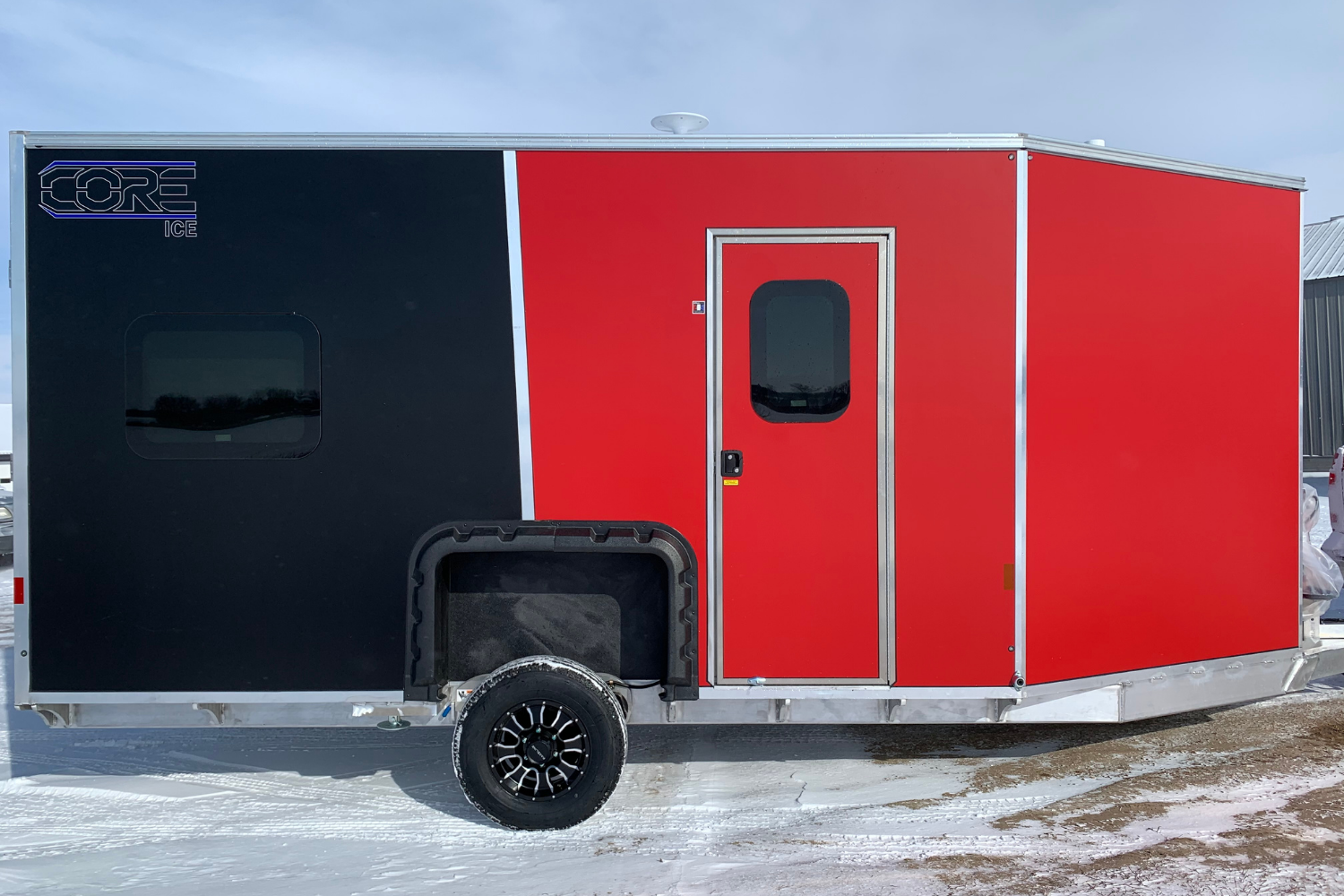

Composite Shell Construction
– INTELLI-CORE Structural Composite Floor, Walls, and Roof
– Aluminum Alloy Frame, 360 Deg Welds at Joints
– Aluminum Wheels
– Long Arm Torsion Suspension
– High-Speed Electric Jack Lift/ Lower System with Push Button Controls

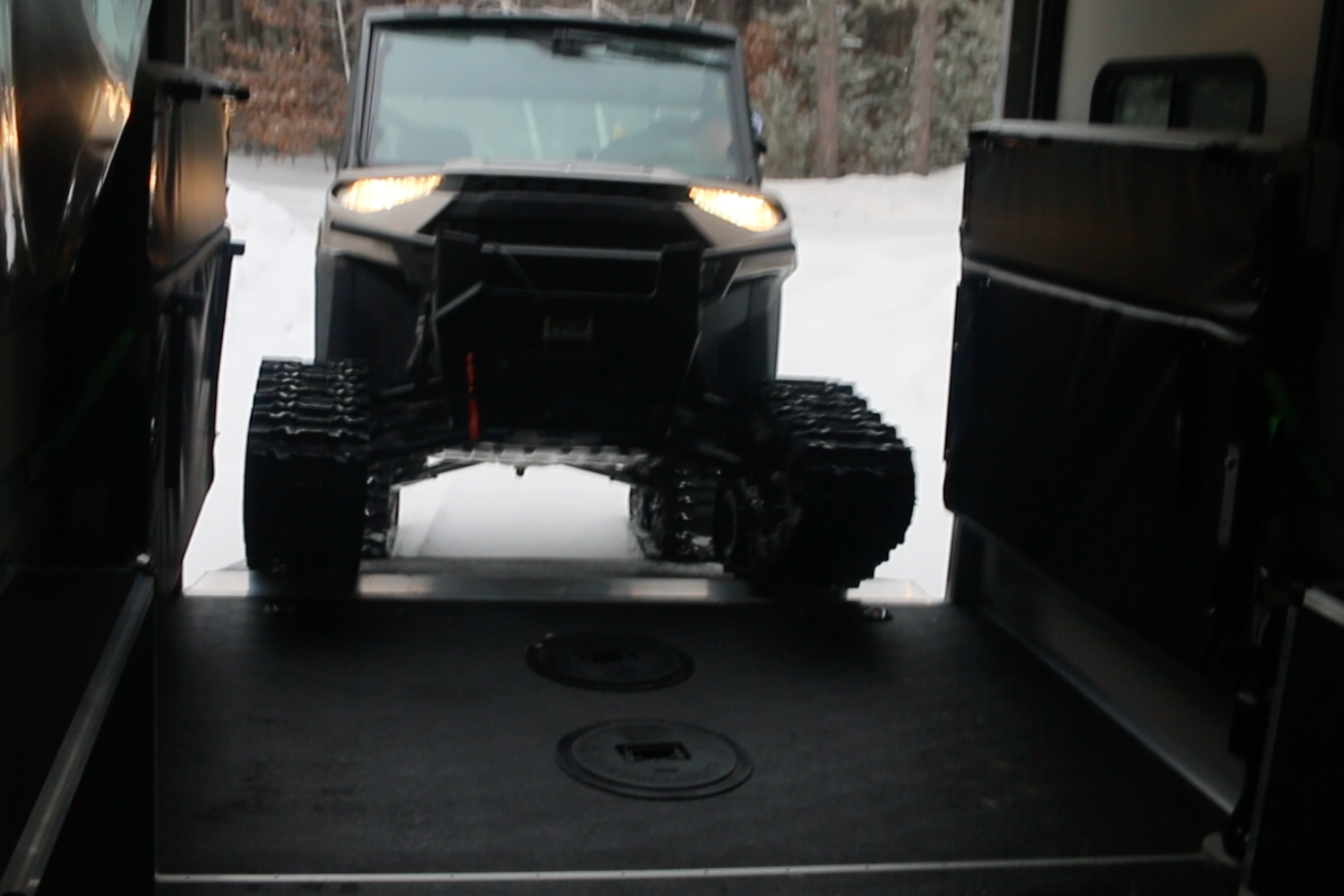

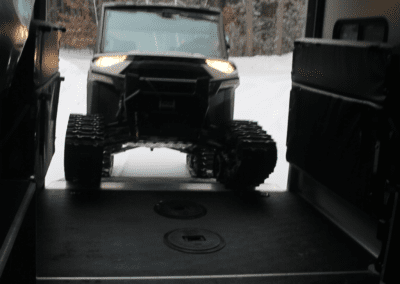

– Fully Insulated Ramp Door w/ 86″ x 85.5″ Rear Opening
– Color Matched INTELLI-CORE Structural Composite Doors
– Bluetooth Capable Unit Control Through Phone App
– Perimeter LED Lighting w/ Dimmer Control; LED Task Lighting

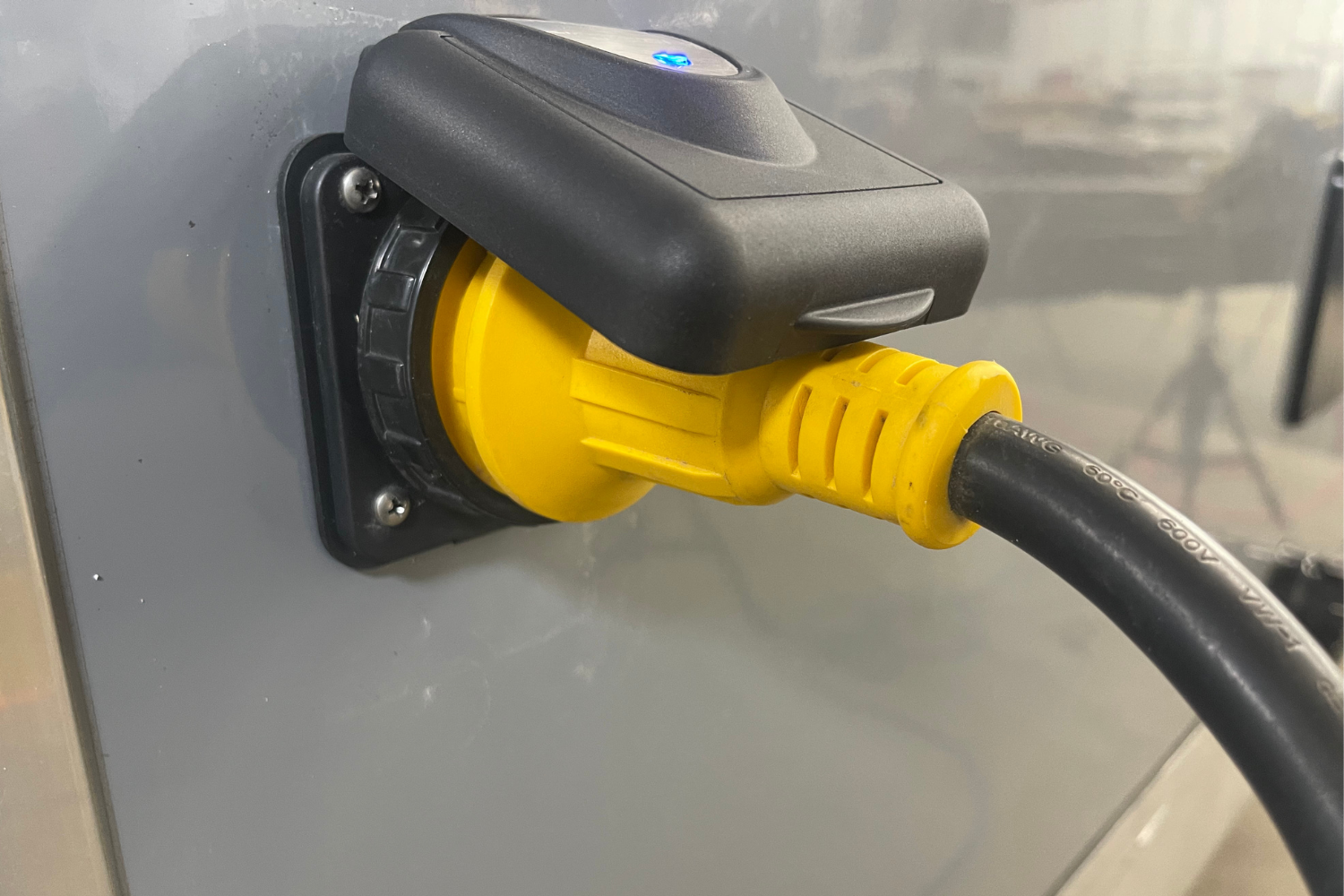

– 110V Outlet, 12V Outlet, USB Charge ports
– 45 Amp Power Center, Battery Gauge, Battery Disconnect Switch
– AM/FM/CD/DVD Stereo w/Bluetooth & Marine Speakers

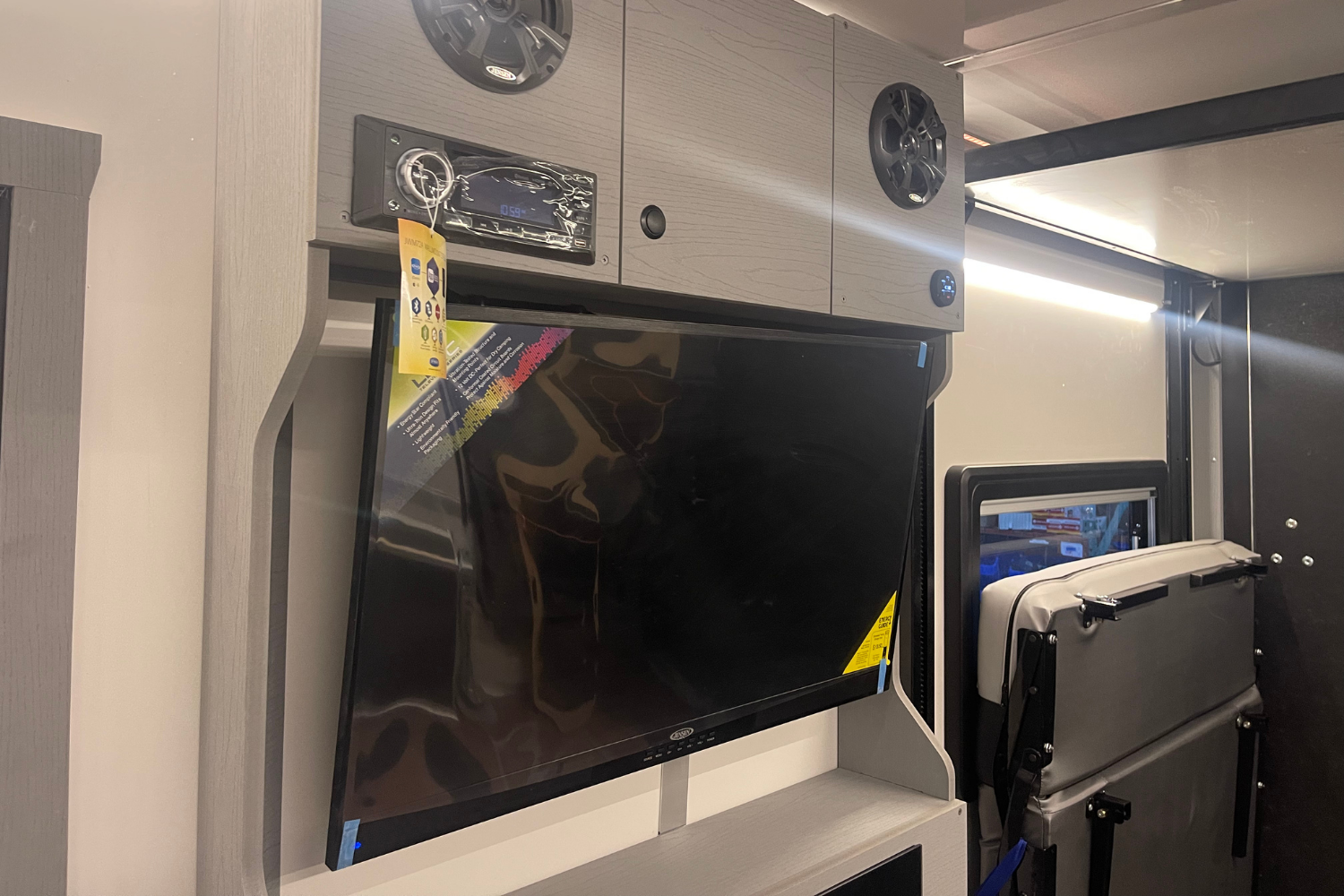

– 40″ Sidewall TV on Locking Side Arm Mount w/Digital King Omni Pro Antenna
– LP/CO Alarm, Smoke Detector, Fire Extinguisher
– High-Efficiency Forced Air Truma Combi Furnace (12V/LP or 110V))
– High Efficiency, Low Profile A/C Unit (11K BTU, 11 amps Power Draw, 110V)
– 21” Oven and 3 Burner Cooktop w/ Flush Glass Top and Exhaust Fan
– Stainless Steel 1 Cu Ft Microwave
– Furnace and Water Heater in One
– Single Truma Combi Appliance for Both Functions Reduces Propane and – Electrical Requirements Only One Small Hole in the Wall for the Intake and Exhaust.

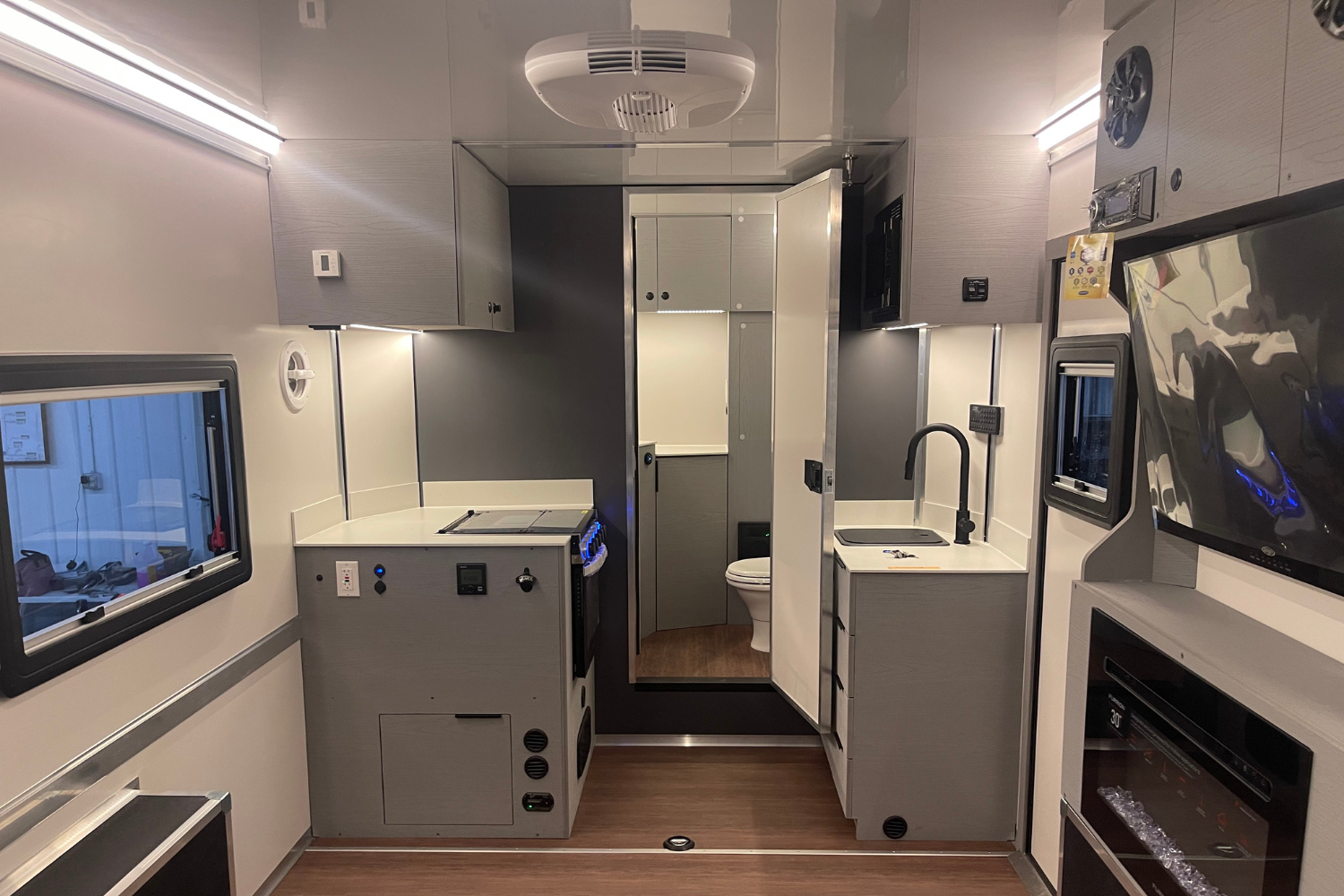

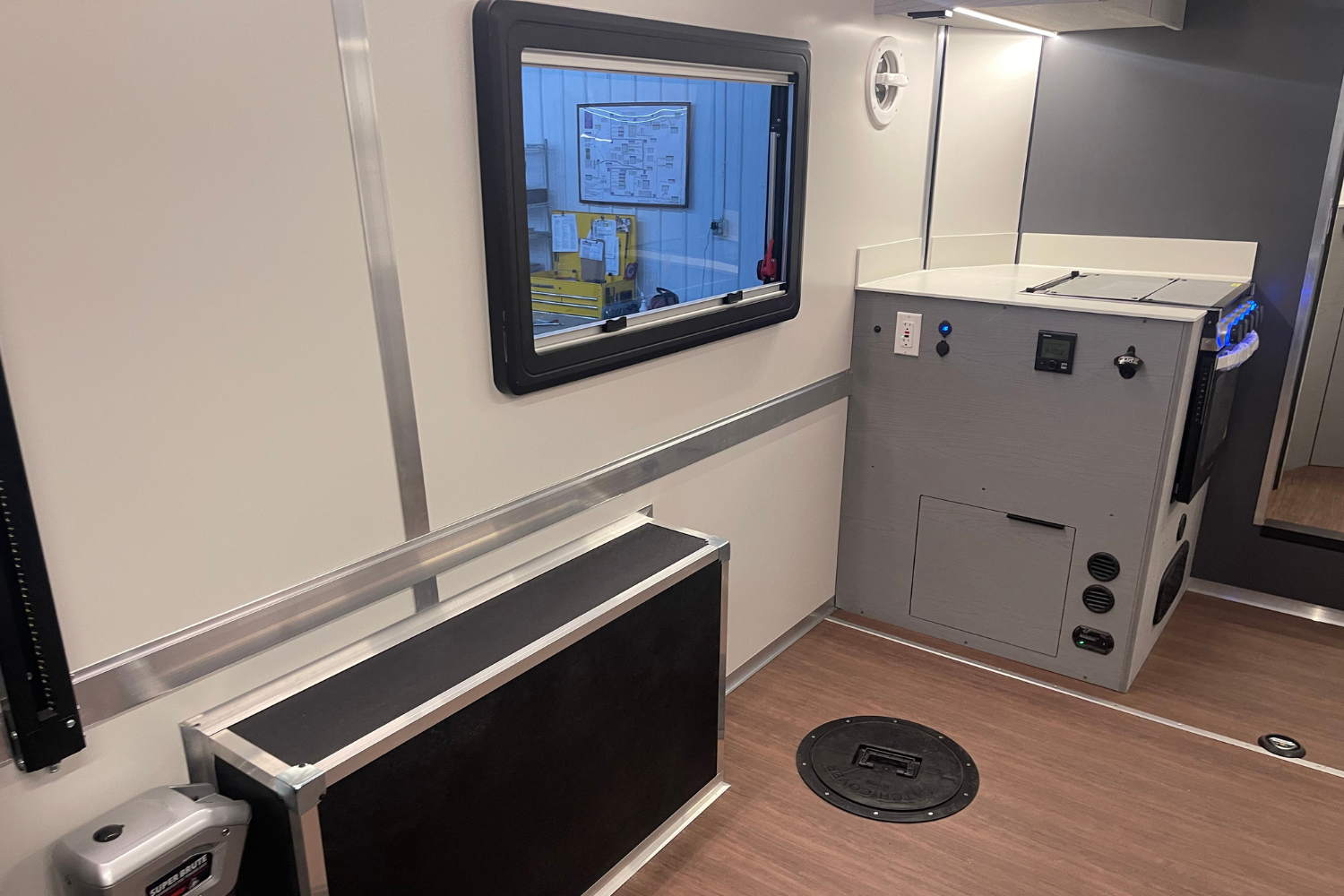

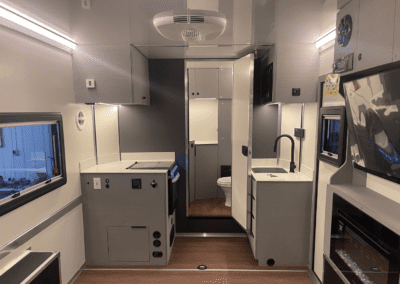

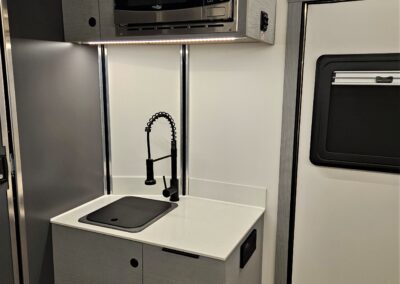

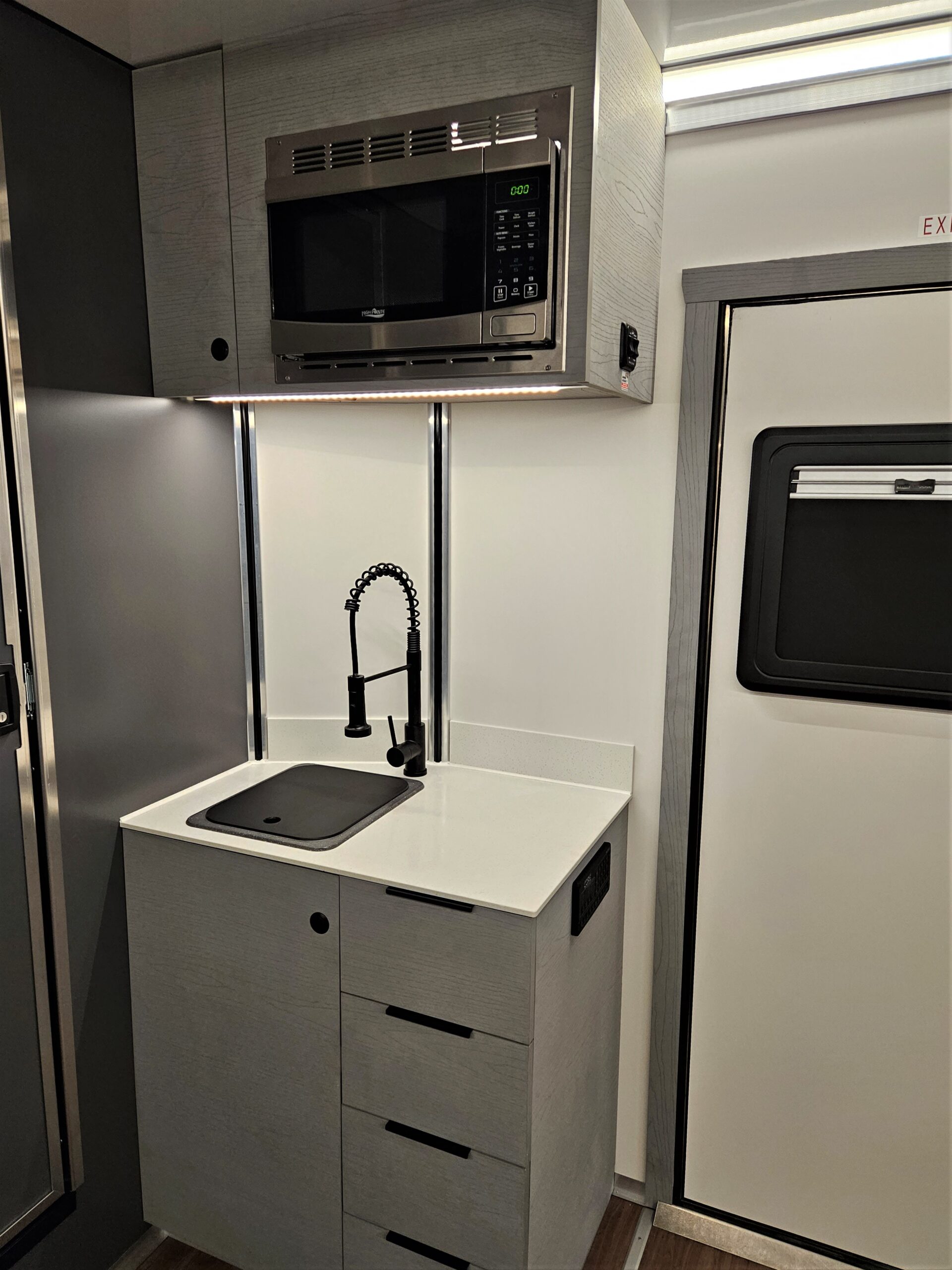

Kitchenette

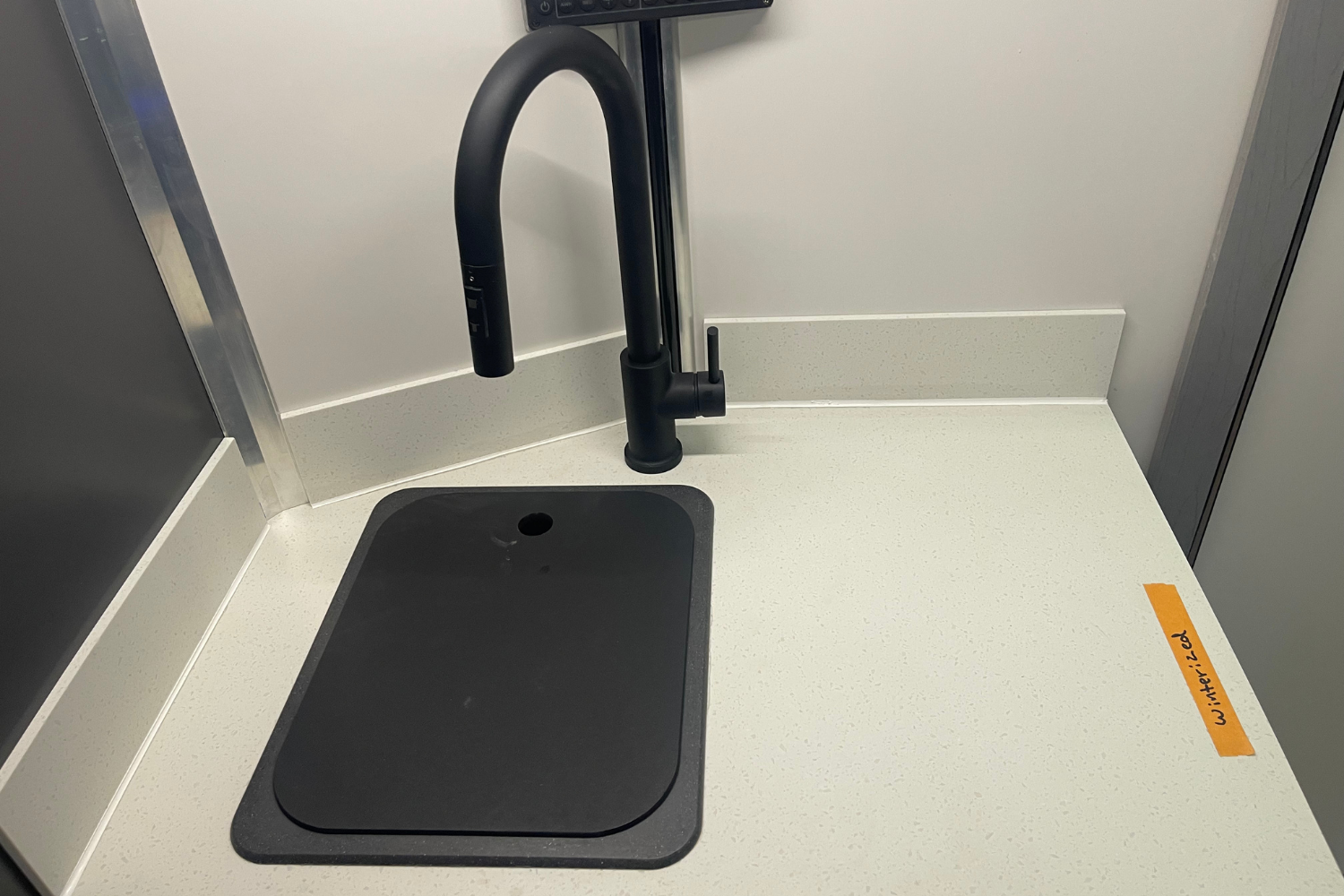

– Kitchen Sink
Refrigeration
– Large 10 cu ft Refrigerator that Runs on 12V. Run It Down the Road; No Hole in the Wall!
Tank Capabilities
– 15 Gallon (15 Gallon) Fresh Water Tank
– 33 Gallon Grey/Black Water (Combined Grey/Black)

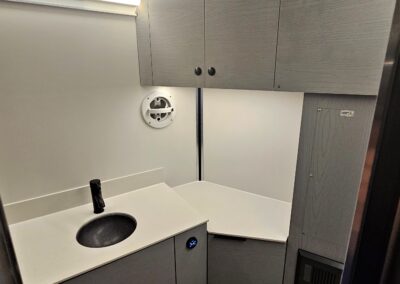

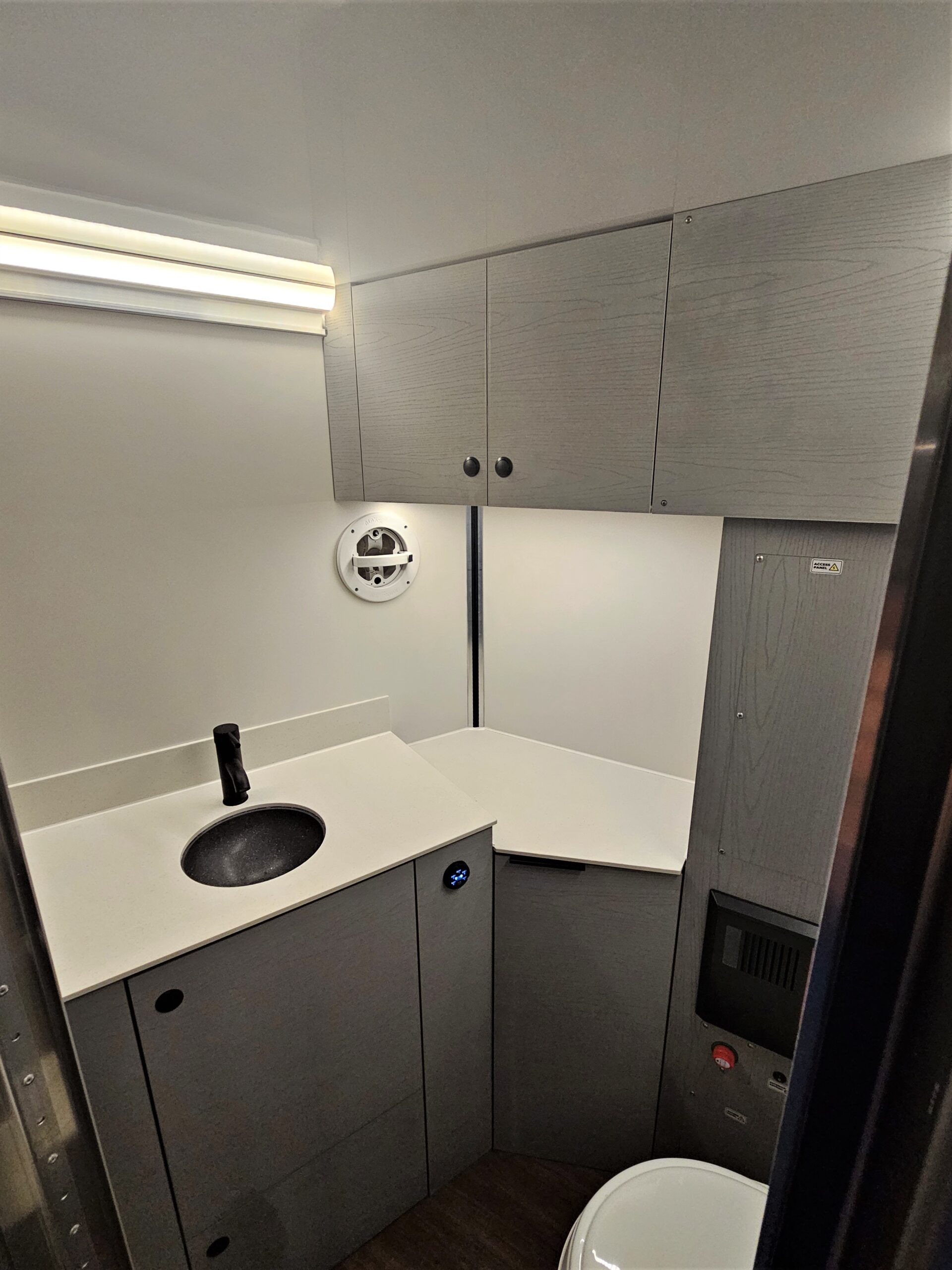

Bathroom
– Full Flushing Toilet
– Sink in Bathroom
– Year-Round Usability
– Advanced Water System that is Usable 365 Days a Year
– Quick, Easy Drain Down
– 15 Gallon (15 Gallon) Fresh Water Tank
– 33 Gallon Grey/Black Water (Combined Grey/Black)
Electrical

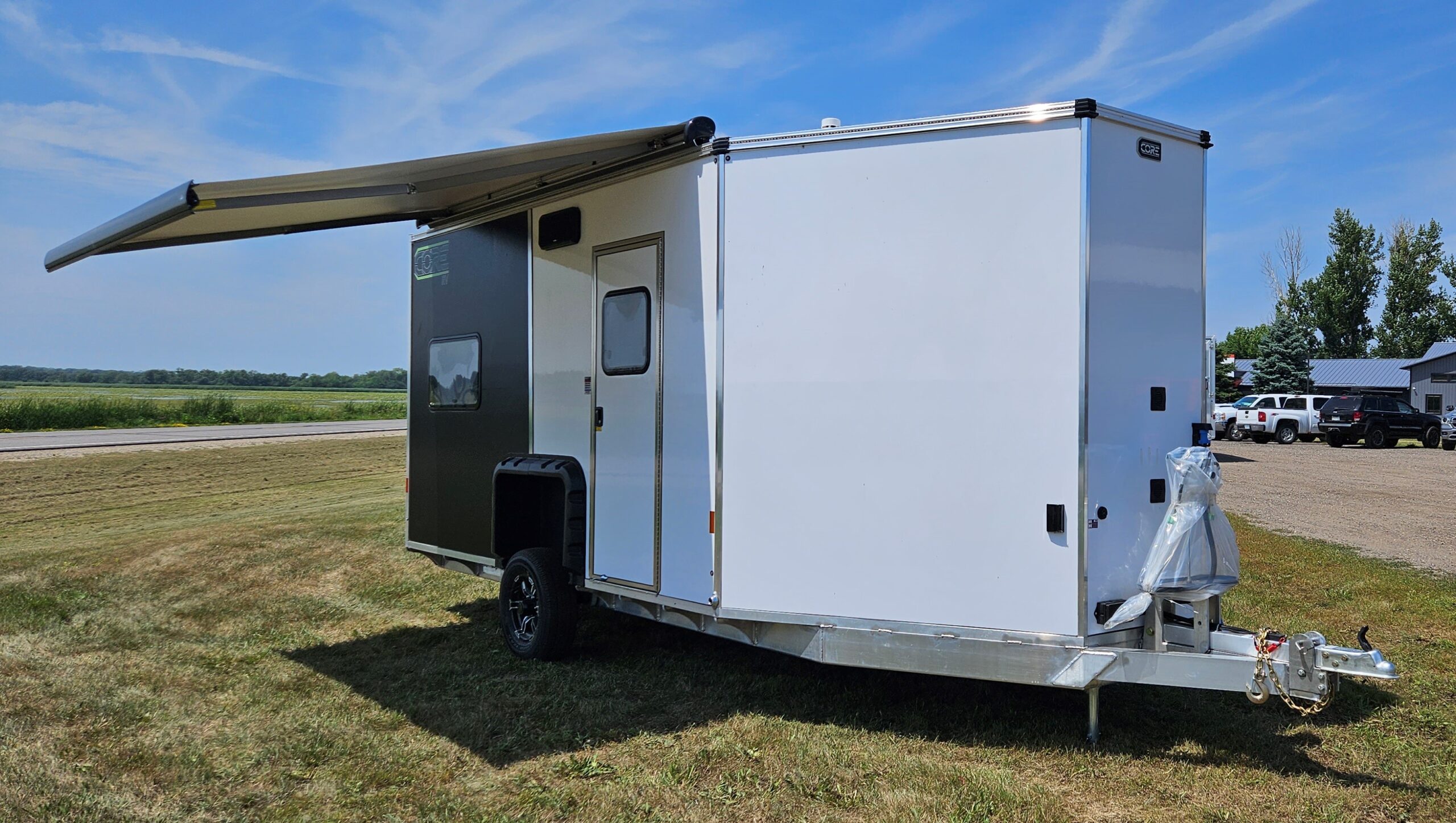

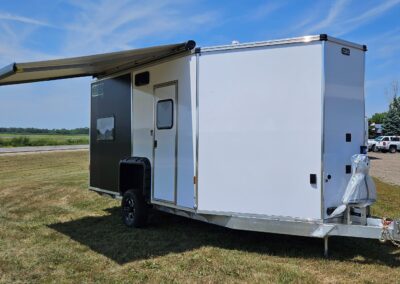

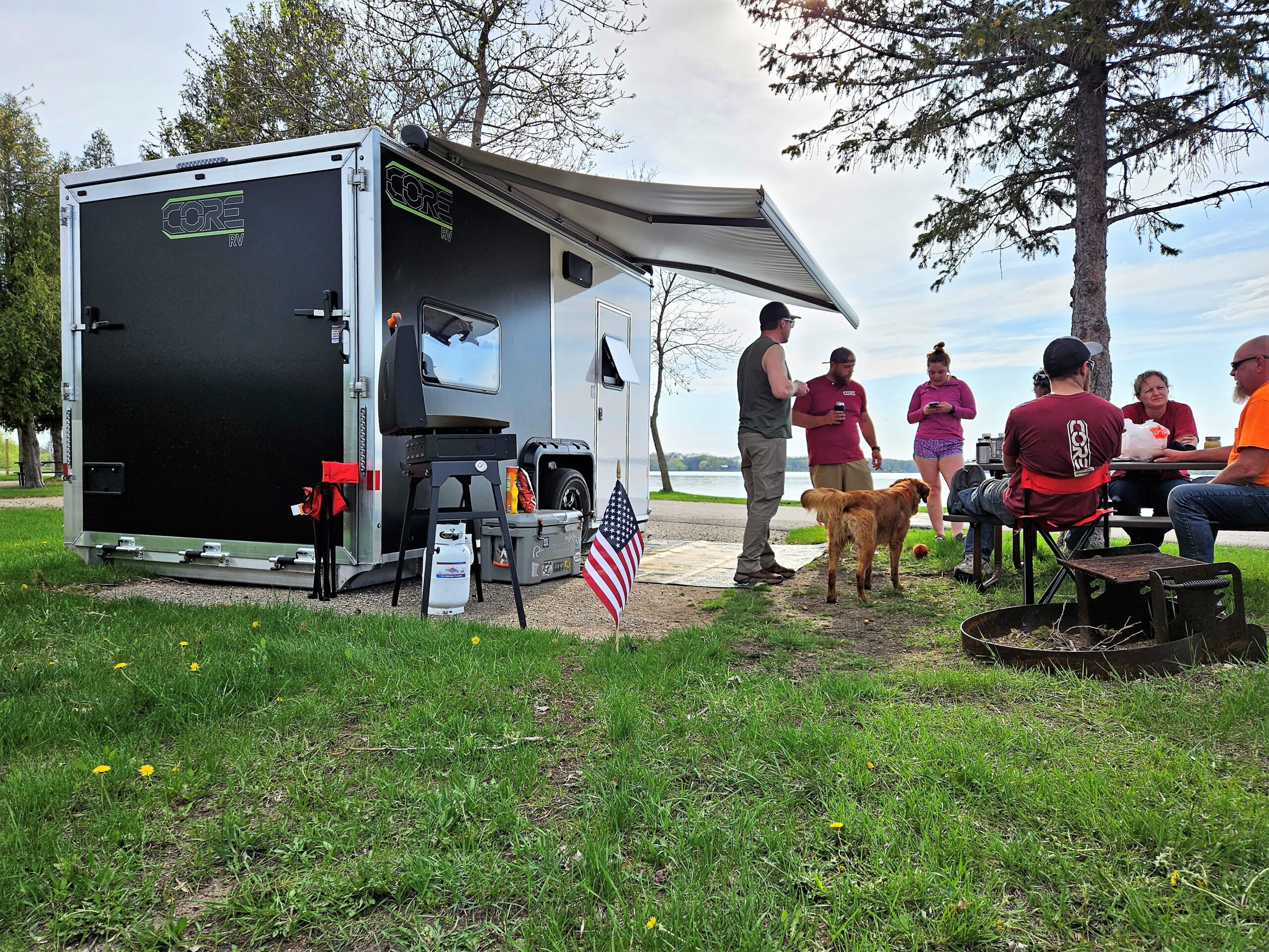

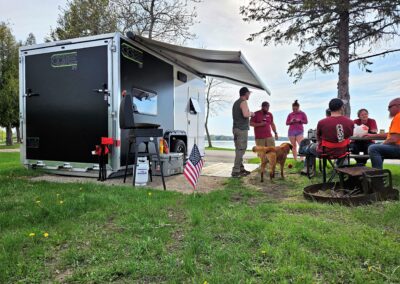

– Armless Electric Side Awning w/ Auto Rain and Wind Control
– Exterior RGB Kit w/ RGB Control Center

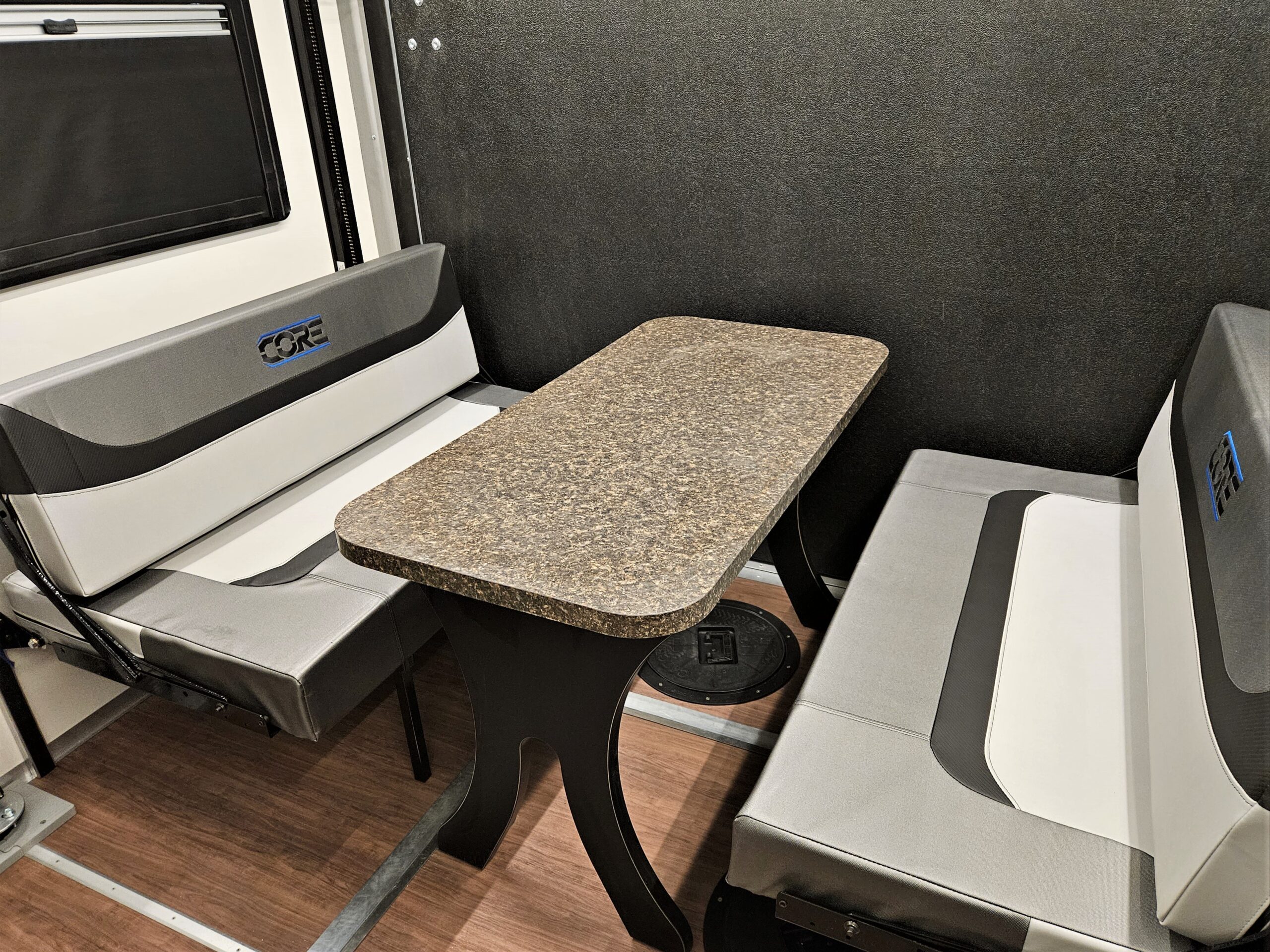

Furniture
– Premium CORE Mid Back Captain’s Chair (Chair, Mount, 12″ Post)
– Premium CORE Atwood Centric Boat Seat (Seat, Mount, 15″ Post)
– Pedestal Seat Base (Springfield Plug-In Style, Base Only)
Entertainment
– Fusion Exterior In-Wall Marine Soundbar
– Exterior Coax Port
Interior Finish
– Walnut Woodgrain Flooring Upgrade

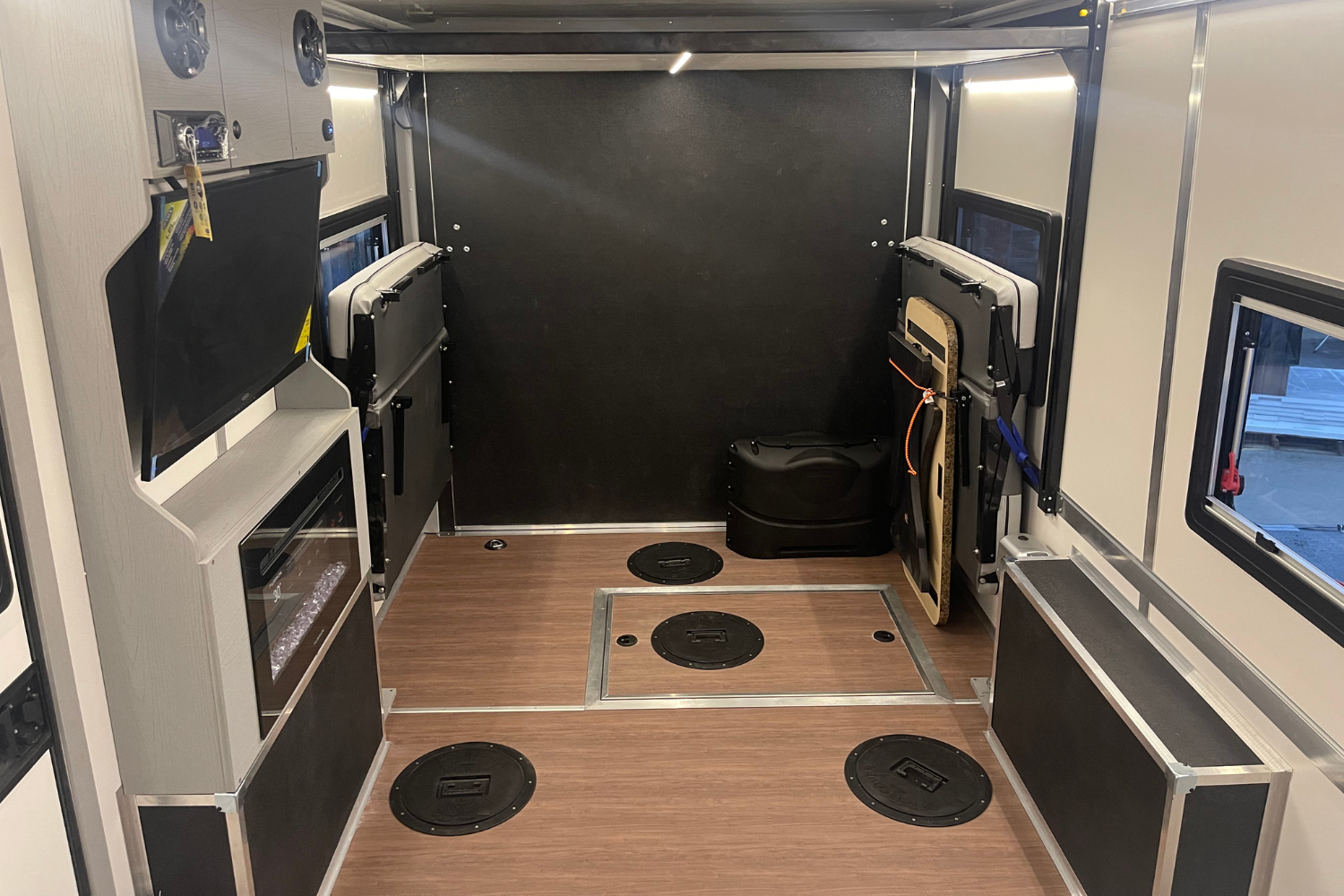

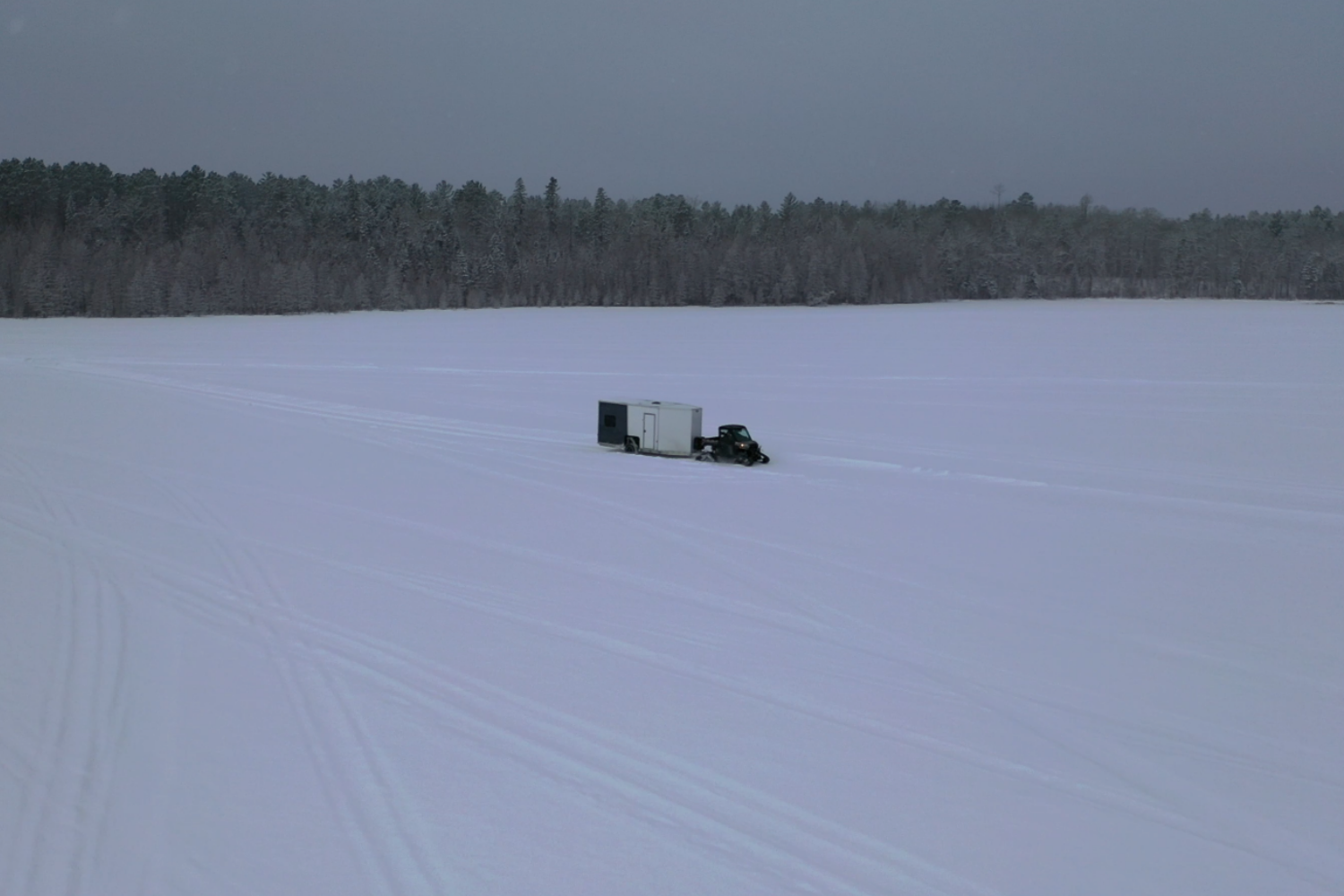

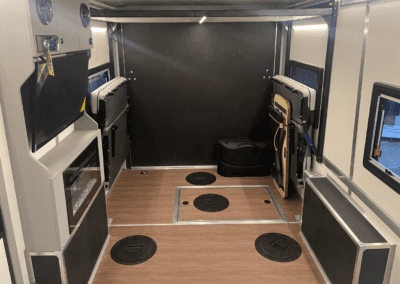

ICE ANGLER EDITION
Looking to take your CORE RV ice fishing? Simply add the ICE ANGLER OPTION to include Catch Cover hole covers to your layout and consider the SPEAR HOLE OPTION to add a large, removable cover that uses a rubber seal and compression latches to seal shut. The entire perimeter frame lowers to the ground to make ice fishing easy and comfortable!

Industry Leading
COMPOSITE PANEL CONSTRUCTION
100% composite panel construction is extremely lightweight, strong, durable, dent-resistant, and waterproof.
STAY WARM OR COOL
The best insulated trailers on the market allow for quick and easy heat up or cool down for maximum comfort with minimal power needs.
GROUND CLEARANCE
Torsion suspension and open undercarriage design improves approach angles and increases off-road capability. Wiring is protected inside the trailer and not exposed under the frame.
