5510

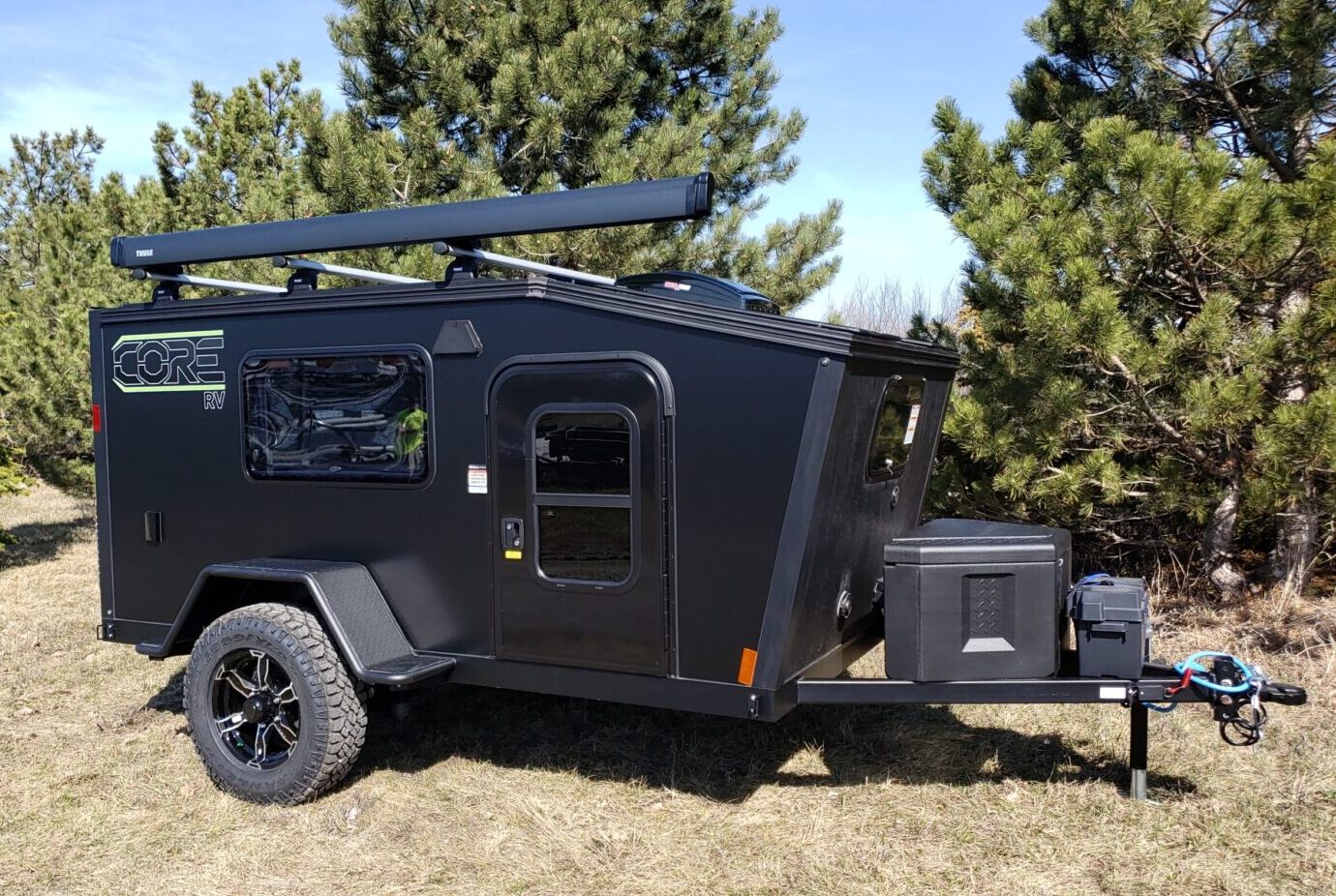

The CORE RV, 5510, is a game-changer, designed for off-road adventures and life on the open road. Its lightweight construction and rugged design make it easy to tow and maneuver on rough terrain, while its spacious interior offers comfortable accommodations while on the go. It’s dent resistant composite panels are strong and the perfect choice no matter the season.
![](https://core-rv-v1721241685.websitepro-cdn.com/wp-content/uploads/2024/06/specs5510.jpg)
LENGTH | 182 in. |
HEIGHT | 74 in. |
BASE WEIGHT | 1,775 lbs. |
GVWR | 3,850 lbs. |
GROUND CLEARANCE | 18″ |
SLEEPS | Up To 6 |
STANDARD FEATURES + OPTIONS
Click to view the standard features and available options.
CONSTRUCTION
Composite Shell Construction
– INTELLI-CORE Structural Composite Floor, Walls, and Roof
– Fully Insulated R9 Roof, R9 Floor & R9 Walls
– Non-Skid, Impact Resistant Flooring
– Lightweight, Waterproof PVC Cabinetry
– NO Mold, NO Rot, NO Mildew

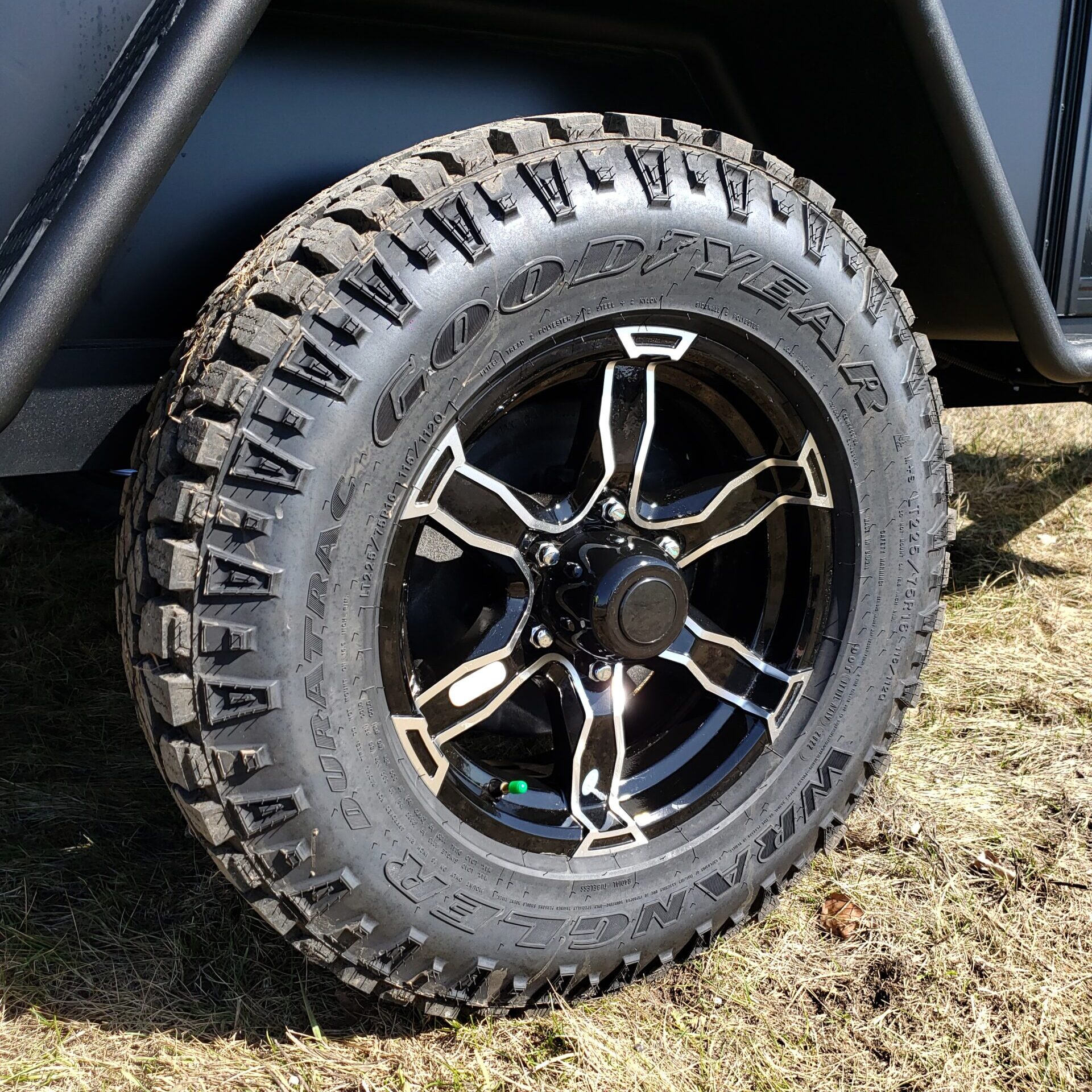

– 16″ Aluminum Wheels with Mounted Matching Spare
– 2″ Rear Receiver Hitch for Lightweight Accessory Attachments
– 3500lb HD Timbren Suspension w/ Electric Brakes
– Dual Side Doors for Easy Entry

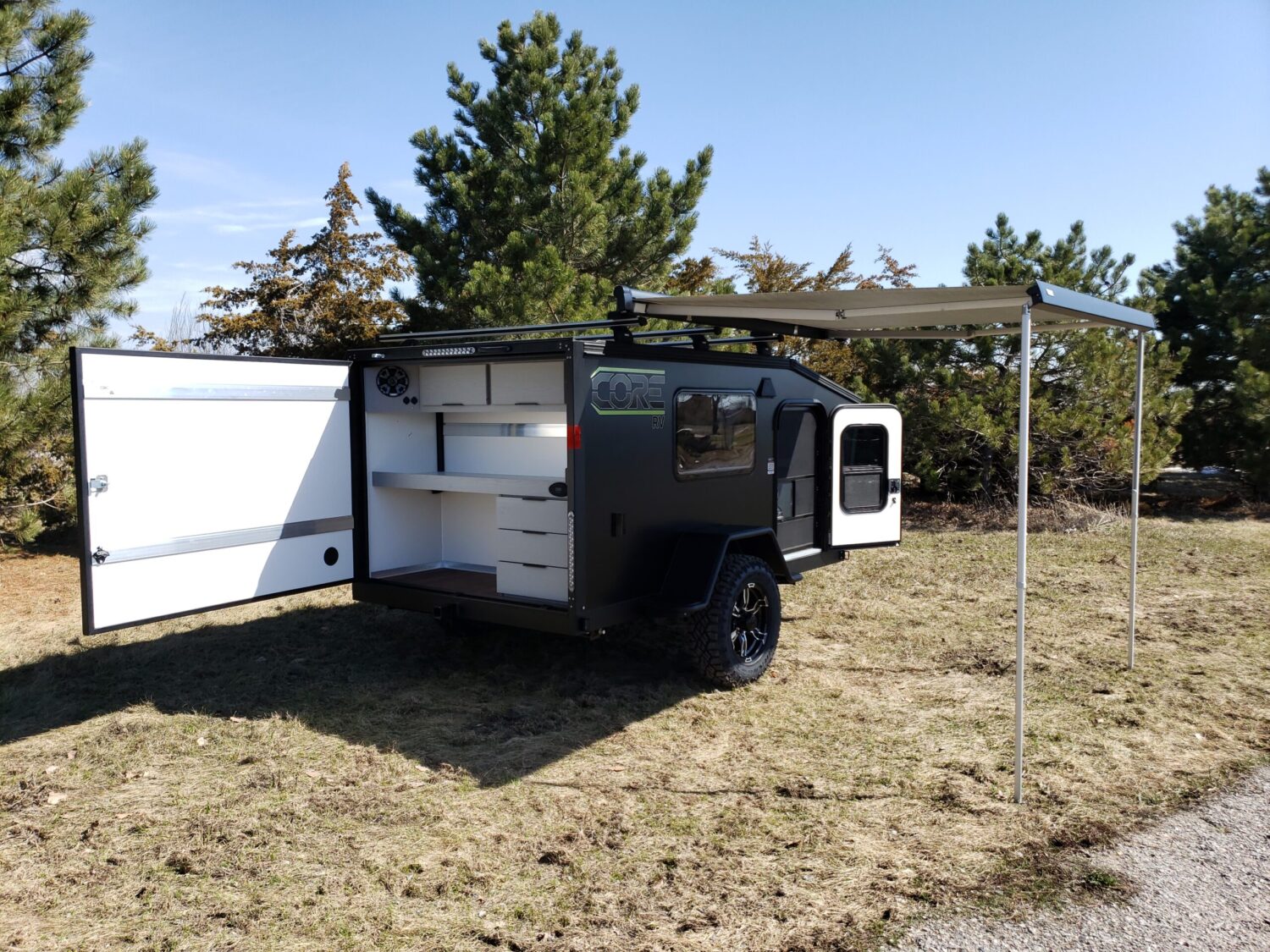

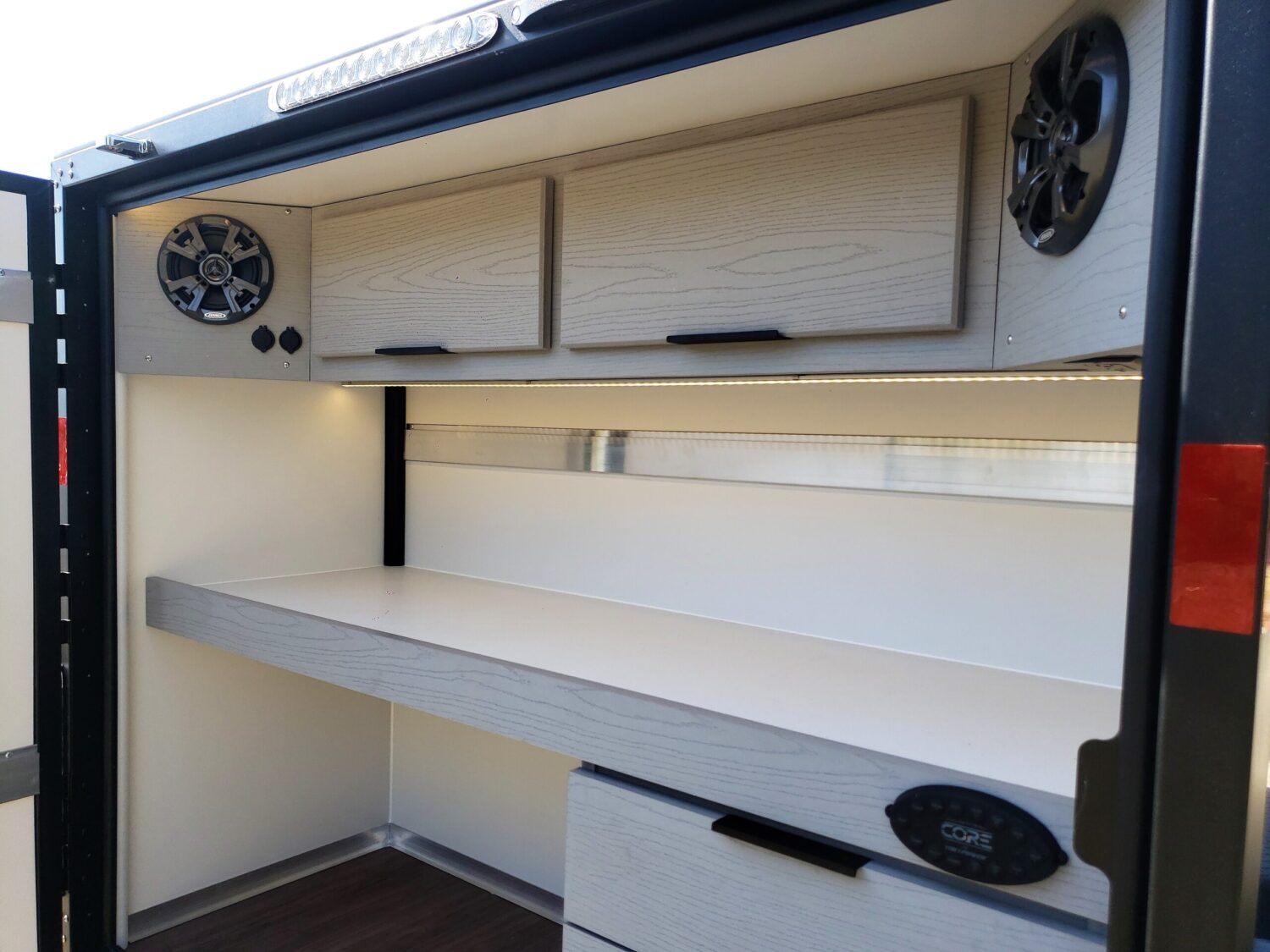

– Rear Galley 50″ x 62.5″ x 23.5″ W/H/L
ELECTRICAL
– Bluetooth Unit Control Through Phone App

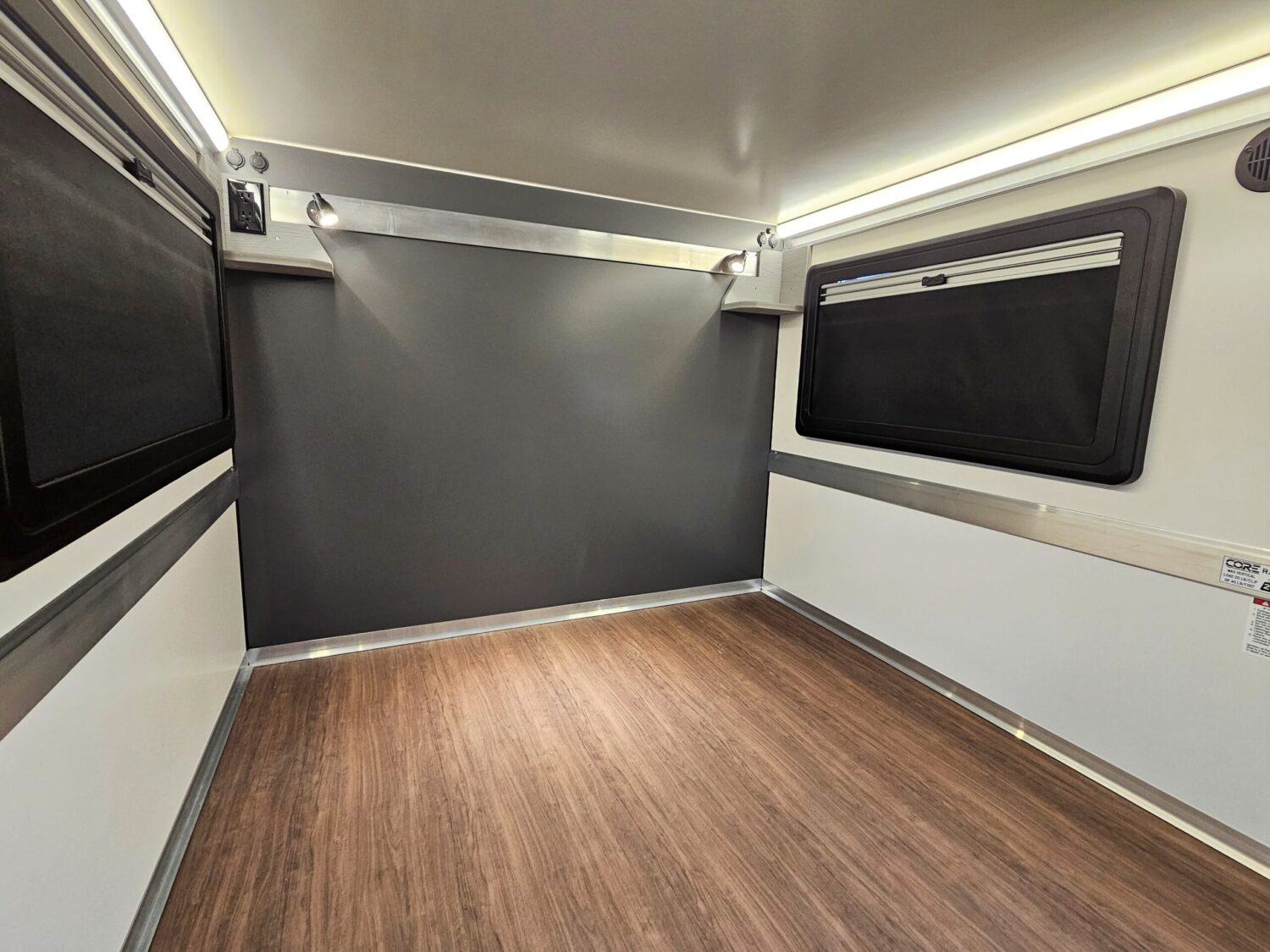

– Full Perimeter Interior LED Lighting w/ Dimmer Control
– LED Task Lighting
– 110V Outlets, 12V Outlets, USB Charge ports
– 30 Amp Power Center w/ Battery Voltage Gauge
– Battery Disconnect Switch
– Front Tongue-Mounted Battery Box
– Smoke Detector, Fire Extinguisher
– LED Trailer Lighting

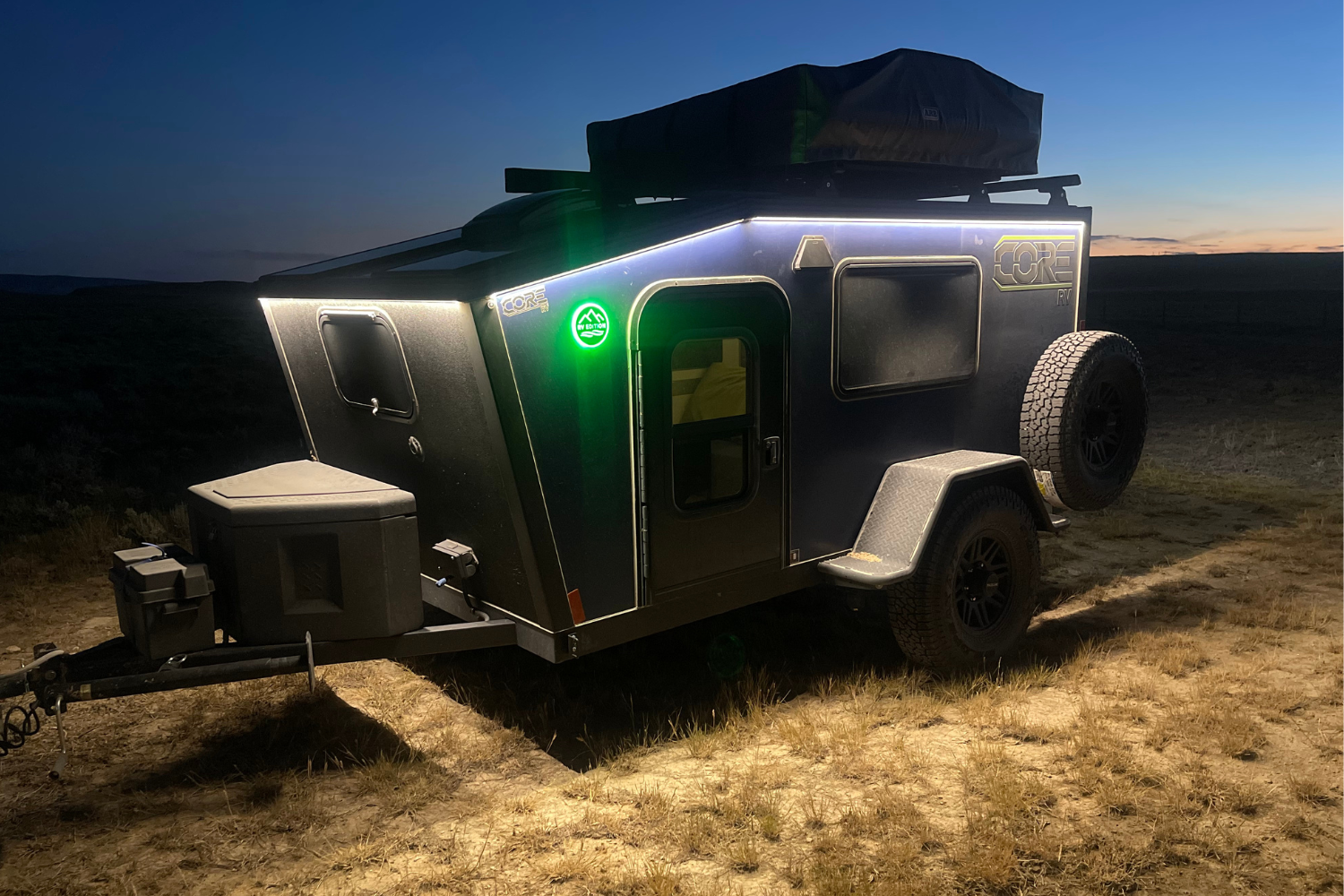

– Full Perimeter Exterior LED Lighting, Rear Work Lights, Front Work Light
– Cold Weather 7-Way cold
FEATURES
– PVC Cabinetry

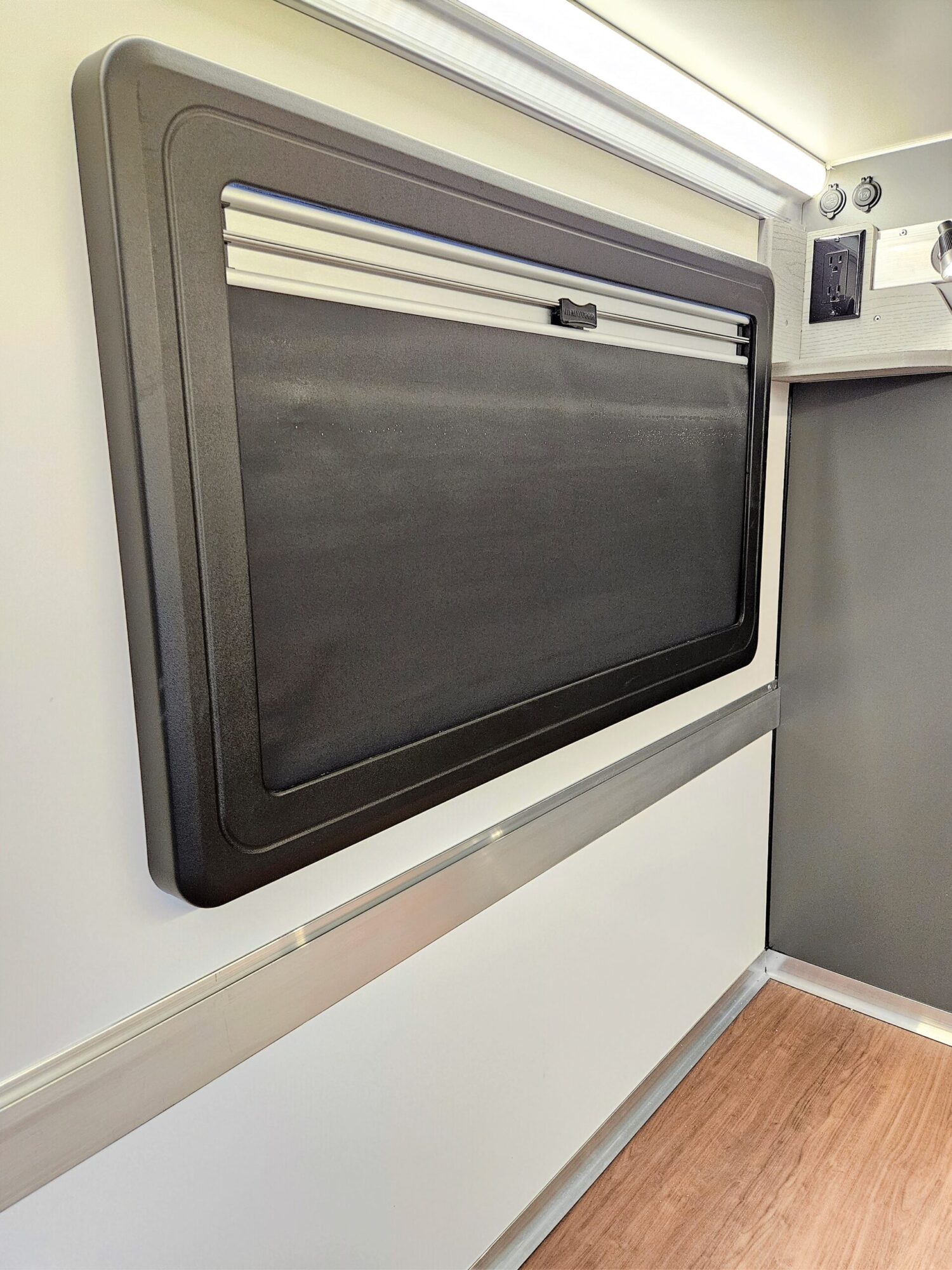

– Dual Pane Acrylic Windows with Built-In Roll-up Screen and Roll-down Darkening Shade System
– Full Tilt Out Windows For Use During Rain Days
– CORE-Rail Track System for Hanging Shelving, Cup Holders, and Other Useful Items to Customize to Your Needs
– Electric 110V, 1000W Furnace
OPTIONS
Comfort
– High Efficiency Forced Air Truma VarioHeat Furnace (LP/12V)
– 5000 BTU Air Conditioner (110V)
Electrical
– Cooktop in Rear Galley: Electric or Propane
E-Drive:
– 200W Solar Panel Package
– Up to 6kWh Energy Storage
– 2kW Constant 120VAC Power / 4kW Boost
Other

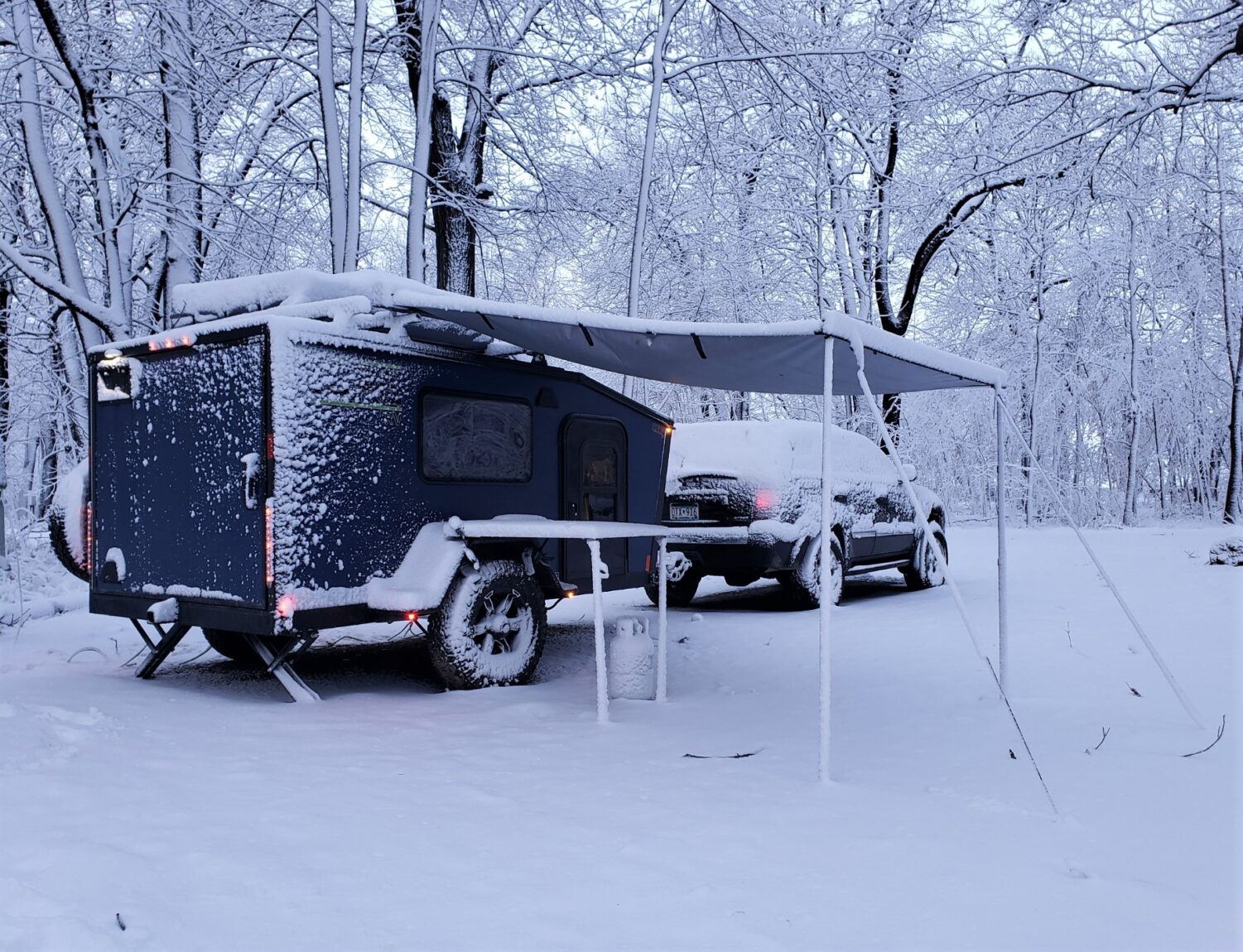

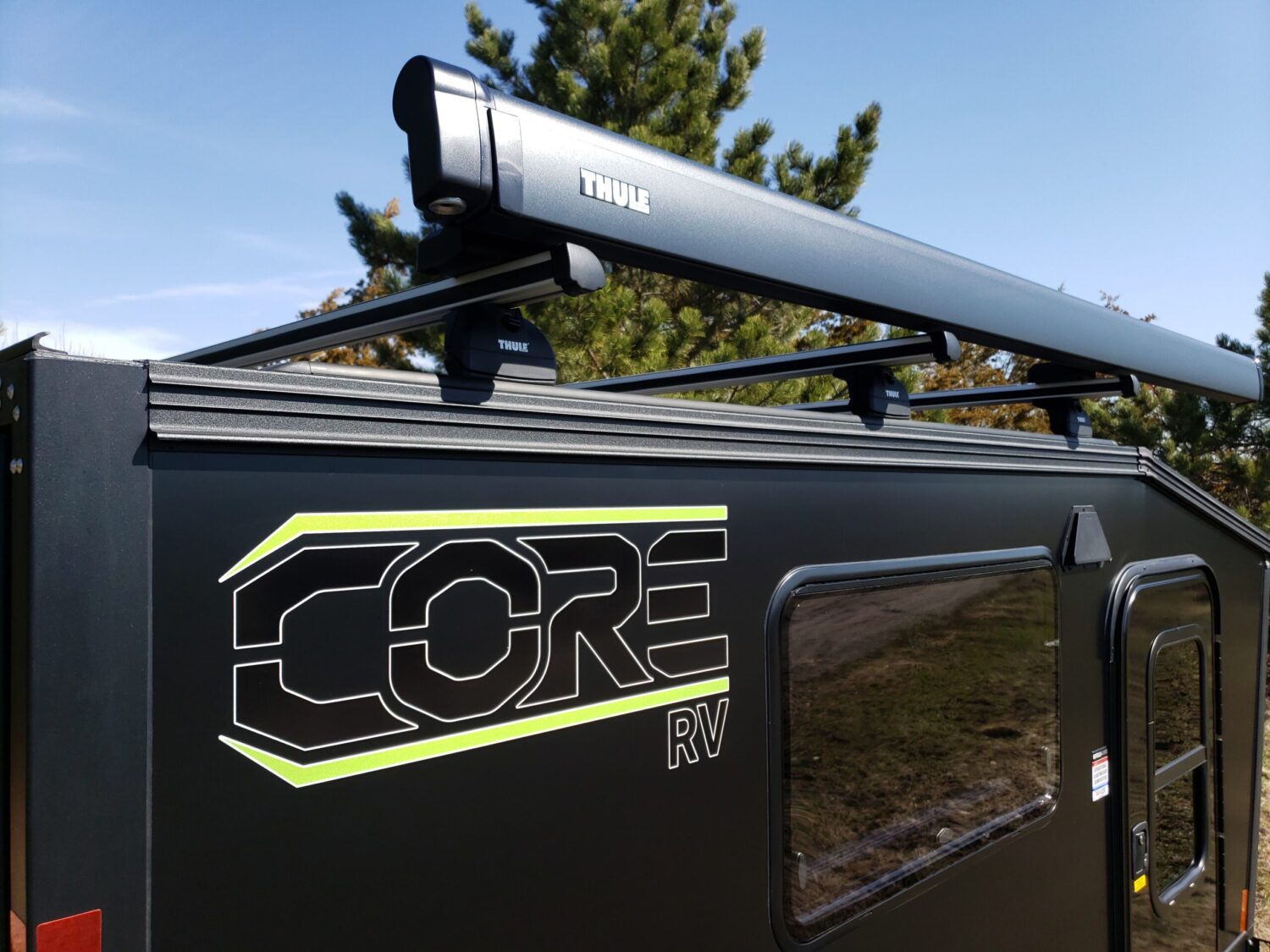

– 270 Degree Nomadic Awning

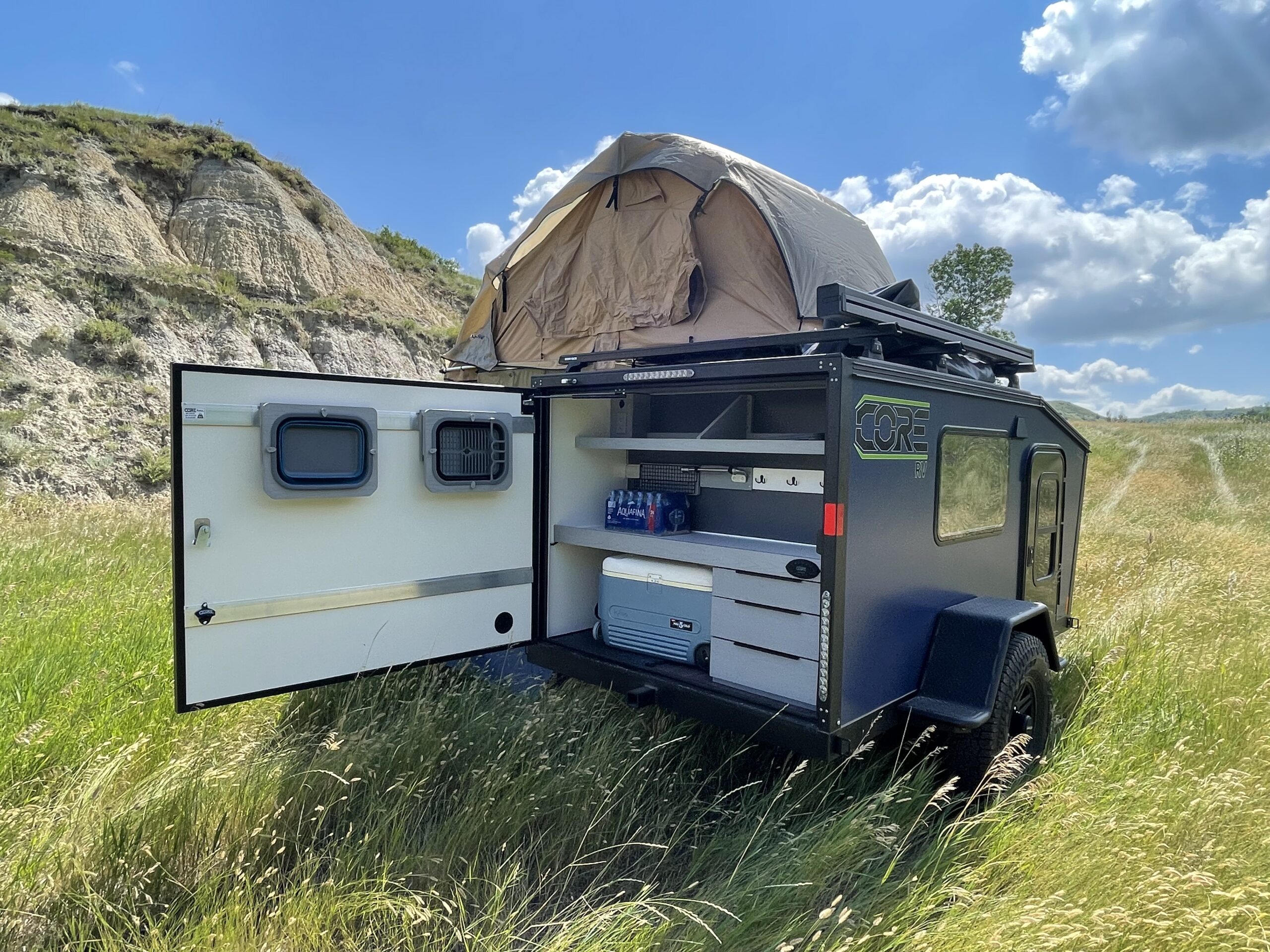

– Roof Tents
– Fridge Tray (29.5″ Wide, 20″ Deep, 19.5″ Tall Opening)
FLOOR PLAN
![floorplan_5510](https://core-rv-v1721241685.websitepro-cdn.com/wp-content/uploads/2023/07/floorplan_5510-1.jpg)
Higher Quality
COMPOSITE PANEL CONSTRUCTION
100% composite panel construction is extremely lightweight, strong, durable, dent-resistant, and waterproof.
STAY WARM OR COOL
The best insulated trailers on the market allow for quick and easy heat up or cool down for maximum comfort with minimal power needs.
GROUND CLEARANCE
Torsion suspension and open undercarriage design improves approach angles and increases off-road capability. Wiring is protected inside the trailer and not exposed under the frame.
